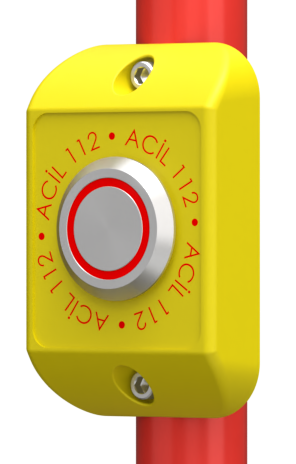

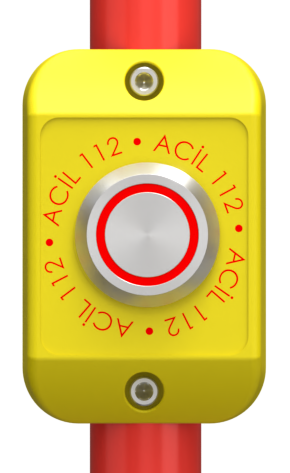

Mounting method : on a flat surface or on a pole (diam.: 30 mm … 35 mm)
Button head diameter : 35 mm
Max. current : 3A
Contact resistance : <50 m
Dielectric strength : 2.000 VAC
Mechanical Life : > 200.000 cycles
Backlight LED : red LED
LED Backlight Life : 40.000 hours
Protection Class : IP64
Operating Temp. : -30Cº ~ +70Cº
Environmental : -30Cº ~ +70Cº
Dimensions : 100 x 75 x 30 mm (pole mount bracket excluded)
